Sprint Freezer Door

sara LBS’s range of quick ‘Sprint’ doors offer the fastest operating speeds on the market. The high speed roller shutter doors are ideal for most industrial applications and specialist products are available for machine protection, food processing areas and cleanrooms.

Features which are unique to the ‘Sprint’ Rapid Roll range include the sara non-contact travelling safety beam, fitted as standard, which provides unparalleled safety for personnel and equipment and our patented MCC Vector Frequency control system which facilitates some of the fastest speeds in the market while reducing wear & tear and increasing longevity.

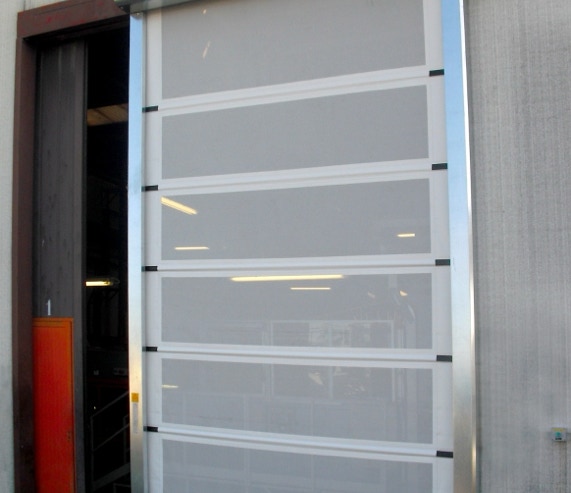

Sprint Freezer Door

DynamicRoll® Freezer 1 is a self-repairing roll up door with a special sandwich curtain composed by PVC/ polyethylene expanded/ PVC curtain.The insulating segments on curtain avoid the icing creating a thermal cut with a continuous insulation on curtain.Thickness off curtain is of about 18mm.The frame structure is equipped with heating cables placed in the sliding system and in connections to avoid condensation and icing of curtain.

These features make door ideal forrefrigeration field to divide environments with different temperatures with humidityless then 30%.

Clear Opening Sizes

Width : 1500 – 6000mm. Height : 2000– 6000mm,

Operating Speed:

Closing speed: up to 0.6m/s, Opening speed: up to 1.0m/s

Curtain Materials:

Also available with silicon-free reinforcing strips, Curtain edges reinforced with wind tabs, High visibility transparent PVC RollTex, Vision panels with coloured reinforcement stripes

Frame Materials

Aluminium bottom rail with optional extra sealing section for better seal on uneven floors, Anodised aluminium side frames with hinged covers offering quick access for maintenance, Optional aluminium barrel covers, Plastic motor covers

Applications:

internal/External

Features

✓ Self- repairing. ✓ Rapid ✓ Sealing ✓ Noiseless

✓ No rigid elements inside the curtain for 100% safety ✓ Plug & play (easy to install)

✓ Low maintenance ✓ Insulating – Thermal K 2,2 Wm2 K
